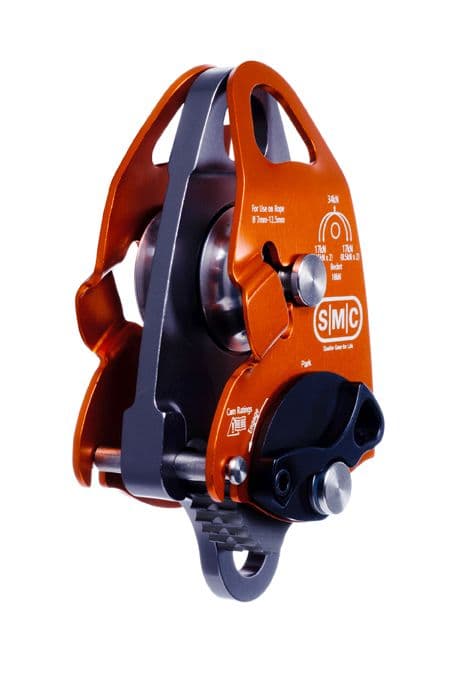

Double pulley with integrated cam for rope access / rescue technique / arboriculture / pruner The double pulley with integrated cam, SMC ADVANCE TECH HX, allows immediate capture without the aid of a prusik loop. Stainless steel needles hold the rope in place. The ADVANCE TECH HX is made from high quality aluminum and anodized to better resist corrosion. For use with ropes with a diameter of 7 mm to 12.5 mm. Features and Benefits of SMC's ADVANCE TECH HX Double Pulley: • High efficiency sealed ball bearings • Operation with one hand • Works most effectively with Prusik cords up to 8mm
| Manufacturer | SMC GEAR |
| Type | Double |
| Axle | Stainless Steel |
| Bearing | Ball bearing |
| Material | Aluminium |
| Dimensions | 5.08” x 2.74” x 1.97” |
| Weight (oz) | 9.52 oz |
| Weight (gramme) | 270 g |
| Rope Range | 7 mm à 12.5 mm |
| Sheave | 1.37” Aluminum |
| 3 Sigma MBS (kN) | 34 kN |
| 3 Sigma MBS (lbf) | 7,622 lbf |
| Becket Strength (kN) | 18 kN |
| Becket Strength (lbf) | 4,046 lbf |
| Certification | NFPA1983 |
